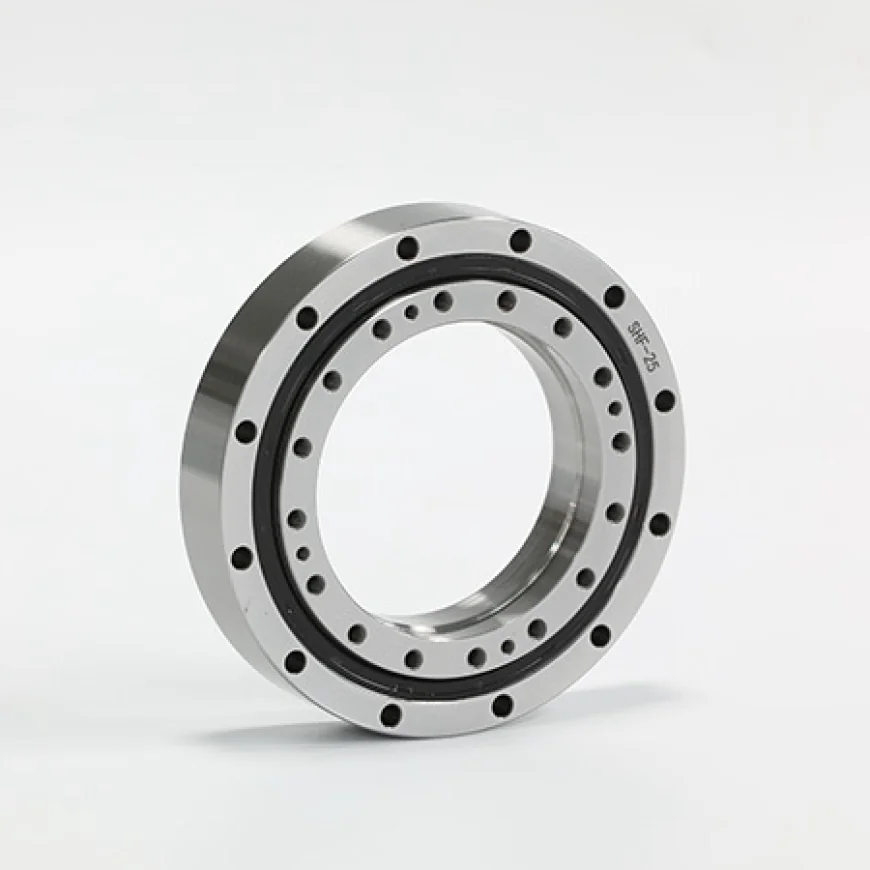

Cross Roller Bearing for High Precision Motion

When your machinery demands extreme precision but delivers vibration, misalignment, or positioning errors, the problem often lies within the bearing system. Standard bearings may struggle with complex load directions, especially in high-accuracy environments like robotics, medical devices, and CNC rotary tables. Upgrading to a high-performance cross roller bearing can dramatically improve rotational accuracy, rigidity, and long-term reliability.

In industries where microns matter, the right bearing solution is not optional—it’s essential.

Why Precision Equipment Fails Without the Right Bearing

Modern industrial equipment frequently operates under combined radial, axial, and moment loads. Traditional ball or roller bearings may not distribute these forces evenly, leading to:

• Rotational runout

• Excessive deflection

• Reduced positioning accuracy

• Increased friction and heat

• Premature wear

These issues can compromise product quality, slow down production cycles, and increase maintenance costs. A properly engineered cross roller bearing addresses these challenges by offering superior structural stability and load distribution.

How Cross Roller Bearings Improve Accuracy

Unique Crossed Roller Design

Cross roller bearings are designed with cylindrical rollers arranged perpendicular to each other in a V-shaped raceway. This configuration allows a single bearing to support radial loads, axial loads from both directions, and tilting moments simultaneously.

Because the rollers make line contact with the raceway instead of point contact, load capacity increases significantly while maintaining compact dimensions. This makes them ideal for applications requiring high rigidity and smooth rotational movement.

Exceptional Rotational Stability

In precision systems such as robotic arms or inspection equipment, even slight movement inconsistencies can affect performance. Cross roller bearings provide:

• High rotational accuracy

• Minimal elastic deformation

• Reduced vibration and noise

• Consistent torque performance

These characteristics help maintain tight tolerances in high-speed and high-precision machinery.

Built for Demanding Industrial Applications

Compact Yet High Load Capacity

Space-saving design is critical in industries like semiconductor manufacturing, medical imaging systems, and automation equipment. Cross roller bearings deliver high load-carrying capacity within a slim profile, allowing engineers to optimize mechanical design without sacrificing strength.

Their compact construction simplifies assembly while improving system rigidity and operational efficiency.

Extended Service Life with Reduced Maintenance

Durability is a key factor in lowering operational costs. High-quality cross roller bearings are manufactured using hardened alloy steel, precision-ground raceways, and advanced heat treatment processes. These features enhance wear resistance and fatigue life.

With proper lubrication and installation, they offer long maintenance intervals and reduced downtime, making them cost-effective for continuous production environments.

Applications That Demand Cross Roller Bearings

Cross roller bearings are widely used in industries where performance and precision are non-negotiable:

• Industrial robotics

• CNC rotary tables

• Machine tool spindles

• Medical diagnostic equipment

• Optical instruments

• Aerospace positioning systems

Their ability to handle complex load combinations makes them a preferred choice for high-precision motion control systems.

Improve Efficiency and Protect Your Investment

Equipment downtime, calibration errors, and unstable motion systems can significantly impact profitability. Investing in a high-quality cross roller bearing ensures greater system rigidity, improved accuracy, and longer service life.

By minimizing deflection and maximizing load distribution, these bearings enhance operational efficiency and maintain product quality standards. Instead of constantly troubleshooting mechanical inaccuracies, upgrading your bearing solution can provide long-term stability and peace of mind.

Precision-driven industries cannot afford compromise. The right bearing technology ensures smoother motion, higher productivity, and consistent performance under demanding conditions.
